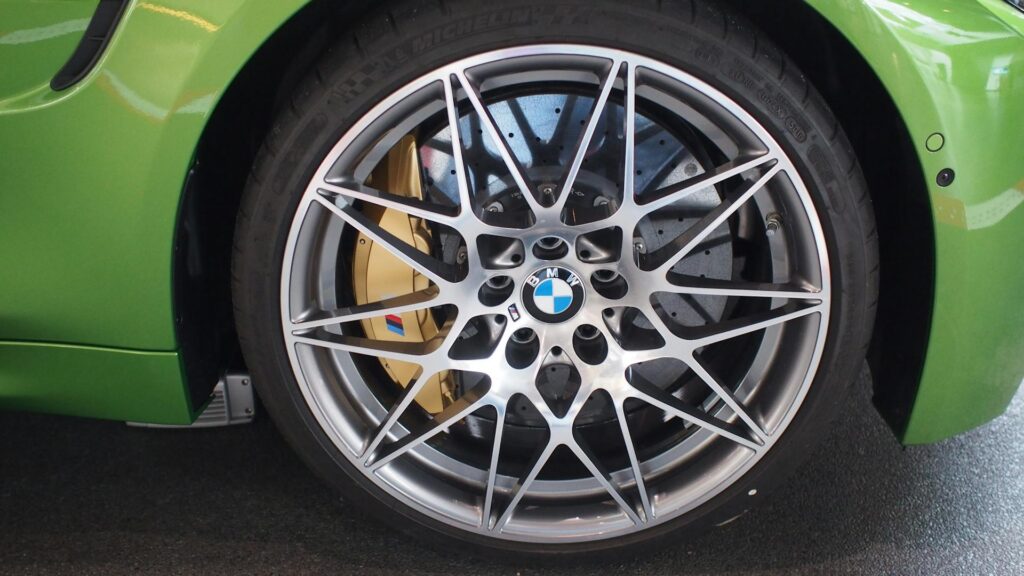

BMW Brake Pad Sensor Reset Not Working? What to Check First
If your BMW brake pad sensor reset is not working, the problem usually comes down to one of a few things: the old wear sensor was reused after it was already triggered, the new sensor is not installed correctly, the reset sequence was done wrong, or the brake warning is still valid because something was not actually fixed.
This is a common frustration after a DIY brake job. You change the pads, try to clear the warning, and nothing happens. Or the message disappears briefly and comes right back.
Before assuming there is a bigger electrical problem, start with the most likely causes first. On most BMWs, the issue is usually the sensor, the installation, or the reset process itself.
What usually causes a BMW brake pad sensor reset to fail?
In most cases, a BMW brake pad sensor reset fails for one of these reasons:
- The old wear sensor was reused after it had already been triggered
- The new sensor was not clipped in or connected properly
- The brake service was not fully completed before attempting the reset
- The wrong axle was serviced first
- The reset procedure was done in the wrong ignition or menu sequence
- The warning is still valid because the car still sees a wear or sensor fault
BMW brake service reminders are simple once you know how they work, but they do not forgive skipped steps very well. If the wear circuit still looks open to the car, the reset may not go through.
1. The old brake pad wear sensor was reused after it was already tripped
This is one of the most common reasons the reset does not work.
BMW brake pad wear sensors are usually one-time-use parts once they have been triggered. If the warning was already on and you reused the old sensor, the car may still see it as worn even if the pads are new.
If you replaced the pads but kept the old sensor, that should be the first thing you check.
Related: BMW Brake Pad Wear Sensor: Symptoms, Replacement, and Reset
2. The new sensor is installed incorrectly or not fully seated
Even with a new sensor, the reset can fail if the sensor is not clipped into the pad correctly or if the connector is not fully seated.
Check for:
- A loose connection at the sensor plug
- A sensor wire routed badly or pulled too tight
- A sensor that is not clipped securely into the brake pad
- Damage to the sensor during installation
If the connection is poor, BMW may continue to see an open circuit and refuse the reset.
3. The brake job is not actually complete yet
Sometimes the reset fails because the system still has a valid reason to show the warning.
If the worn item that triggered the warning was not actually replaced, or the pads are still below threshold, the reset may not complete because the car is still seeing a real brake service issue.
This is where people get into trouble by assuming the warning is “just electronic.” Sometimes the reset is not working because the warning is still legitimate.
Related: BMW Brake Pad Warning Light: What It Means, What Causes It, and What to Do Next
If the reset appears to complete but the warning still remains, read this next: BMW Brake Warning Still On After Reset? What It Usually Means.
4. The reset procedure was done in the wrong sequence
BMW service resets can be picky. If you use the wrong ignition state, release the button too early, or back out of the service menu too quickly, the reset may fail even when the brake work itself was done correctly.
The exact steps vary a little by model, but the general rule is the same: complete the brake work first, install the correct new sensor if needed, then run the reset procedure carefully and in the correct order.
For the full reset process, read this: Resetting BMW Brake Pad Sensor: Step-by-Step After a Pad Change
5. You serviced one axle, but the warning is for the other one
This is another easy mistake. Depending on the model and brake condition, the triggered wear sensor may be on a different axle than the one you just serviced.
If you replaced the front pads but the rear sensor is the one still showing wear, the reset may not solve the warning. Check which axle actually triggered the message before blaming the reset itself.
6. There may be a wiring or sensor circuit issue
If you used the correct new sensor, installed it properly, completed the brake service, and followed the reset sequence correctly, then the next possibility is a wiring or circuit issue.
That can include:
- Damaged sensor wiring
- A bad connector
- Corrosion near the plug
- A fault in the wear-sensor monitoring circuit
This is less common than a reused or badly installed sensor, but it does happen, especially on older BMWs or cars with prior brake work done poorly.
What to check first if your BMW brake sensor reset will not clear
If you want the fastest troubleshooting path, check these in order:
- Confirm whether the old wear sensor was reused
- Inspect whether the new sensor is fully installed and connected
- Verify the brake job is actually complete on the axle that triggered the warning
- Repeat the reset process carefully
- Check whether the warning may be coming from the other axle
- Inspect for wiring or connector damage if everything else looks correct
This order catches the most common problems first and keeps you from wasting time on less likely causes.
Can you drive if the brake pad sensor reset is not working?
Maybe, but do not assume the warning is harmless.
If you know the pads and sensor were replaced correctly and the brakes are in good condition, the issue may be limited to the reset or sensor circuit. But if you have not confirmed the actual brake condition yet, treat the warning as valid until proven otherwise.
Brake warnings are not something to brush off just because you recently worked on the car.
Final answer
If your BMW brake pad sensor reset is not working, the most likely causes are a reused or incorrectly installed wear sensor, an incomplete brake job, a reset sequence issue, or a warning that is still valid because the underlying problem was not fully fixed.
Start with the sensor and installation first. In most cases, that is where the problem is.
